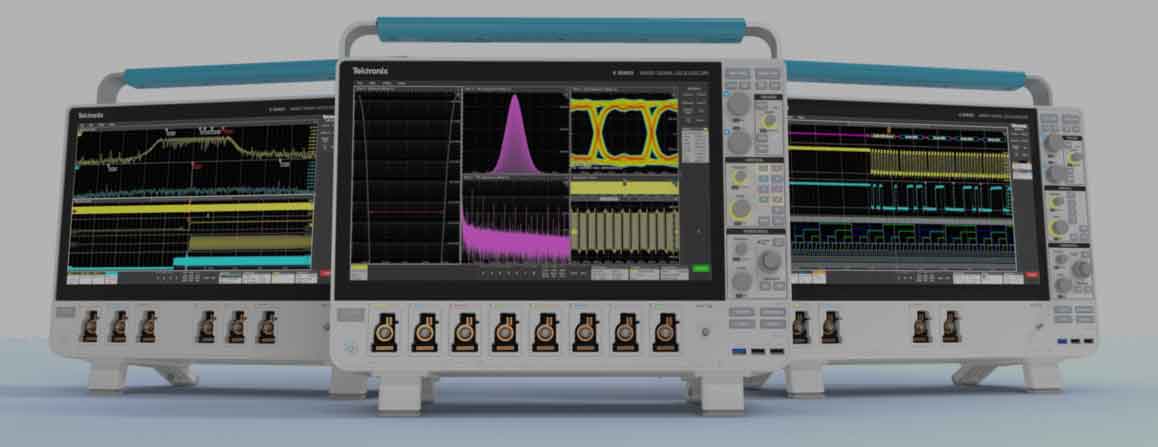

6 Series B MSO Mixed Signal Oscilloscope

Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.

Base Price
HKD 323,000 +
Select Model to Configure/Quote
Product Overview Datasheet Manual Downloads
Bandwidth

Up to 10GHz

Sample Rate

Up to 50 GS/s

Record Length

Up to 1 G

Vertical Resolution

12 bits

6 Series B MSO

Get to know the 6 Series B

Performance Specifications

A new standard in usability

Built-in measurements and analysis

Tackling high-speed clocks and data

Multi-channel spectrum analysis

From 3 V power rails to 3-phase drives

Get to know the 6 Series B

  • Performance Specifications
  • A new standard in usability
  • Built-in measurements and analysis
  • Tackling high-speed clocks and data
  • Multi-channel spectrum analysis
  • From 3 V power rails to 3-phase drives

Lowest noise. More detail.

See signal details you couldn’t see before.

  • Lowest input noise enabled by new TEK061 front-end ASICs
  • 12-bit resolution at 5 GHz and up to 16-bit resolution at 200 MHz
  • < 55 µV of noise at 1 mV/div and 1 GHz
  • < 1.25 mV of noise at 50 mV/div and 10 GHz

Synchronized multi-channel spectrum analysis

Get 4, 6 or 8 channels of spectrum analysis. Hardware digital downconverters (DDCs) in parallel with time domain signal processing unlock exciting capabilities.

  • Any analog channel can be viewed as a waveform, spectrum, or both
  • Plot and trigger on changes in RF frequency or magnitude
  • Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
  • Spectrum controls such as center frequency and RBW are completely independent of time domain controls

Advanced analysis simplified

Characterize jitter on GHz clocks and serial buses with ease. Bring statistics into your everyday toolkit with integrated measurements. Use the same simple drag and drop action to add advanced and everyday measurements.

  • Automated measurements and trend analysis
  • Spectrum View synchronized multi-channel spectrum analysis
  • Advanced jitter analysis
  • Advanced power analysis
  • Power rail measurements
  • Memory analysis and debug
  • High-speed serial compliance
  • 5G NR signal analysis

Fidelity begins at the probe tip

With 4, 6 or 8 FlexChannel® inputs you can browse your circuits with the included 1 GHz probes. Connect high performance single-ended active probes or differential probes, or do both at once with TriMode probes. Connect a TLP058 logic probe and get 8 digital channels on any FlexChannel input to expand your system visibility.

  • Built-in 1 MΩ and 50 Ω input terminations
  • 1 GHz low-loading passive probe for each input, included
  • TekVPI probe interfaces with 10W of probe power per channel for differential, current, power rail, and optically isolated probes
  • TDP7700 Series 4, 6, 8 and 10 GHz TriMode probes -- perfect for measuring high-speed communications

Get it done

Add capabilities when you need them and for as long as you need them. Share data instantly in an integrated cloud-based workspace. All to get things done, fast.

Tekscope
6 Series B MSO Mixed Signal Oscilloscope Specifications

Specification Overview

Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe

Bandwidth 1
1, 2.5, 4, 6, 8, 10 GHz

Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels

Record Length 1
Up to 1 Gpoints on 4 channels
Up to 500 Mpoints on > 4 channels

Signal Generator 1
13 standard waveform types, plus arbitrary

Digital Voltmeter 2
4 digit

Trigger Frequency Counter 2
8 digit

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen

1 - Optional and upgradeable
2 - Free with product registration

November 2023 firmware release enables these new features and options

Upgrades on all instruments

  • New measurement annotations display reference levels, top/base levels, start/end points and more.
  • New trace file records commands sent to the programming interface.

Upgrades on instruments with advanced analysis options

  • Instruments with Advanced Power Measurement and Analysis (PWR) add phase response, Tg and Q(Tg) plots to impedance measurements, and support for differential probes and phase wrapping to Bode plots.
  • Instruments with Wide Bandgap Double Pulse Testing (WBG-DPT) acquire improved level determination for switching and timing analysis.
  • Instruments with Inverters, Motors and Drives Analysis (IMDA) harmonics add TDD measurements, THD-R and THD-F acquisition trend plots and support for IEEE519-2022. Instruments with IMDA-DQ0 gain flull support for resolvers. Instruments with IMDA-MECH get enhanced QEI support.

  • Instruments with Advanced Jitter Analysis (DJA) get enhanced eye diagram mask testing.

Upgrade on instruments not running Windows

  • e*Scope password authentication.

Updated PC Software

  • TekScope waveform analysis software now incorporates many of the new features and options listed above.

Already have a 6 Series? Get your update.

Download new firmware

What's in the box?

  • One TPP1000 1 GHz, low-C passive probe for each channel, with accessories
  • Front cover with accessory pouch
  • Power cord
  • Printed Installation Manual covers safety and basic operation
  • Comprehensive built-in online help
  • Certificate of traceability
  • 1-year warranty on the instrument and included probes
What's in the box?
Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Function Generator Output List Price Configure And Quote
MSO64B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

4

Up to 32 (optional)

1 (optional)

 HKD 323,000 Configure & Quote
MSO66B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

6

Up to 48 (optional)

1 (optional)

 HKD 412,000 Configure & Quote
MSO68B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

8

Up to 64 (optional)

1 (optional)

 HKD 530,000 Configure & Quote
Model Analog Bandwidth Sample Rate Record Length Analog Channels Digital Channels Function Generator Output List Price Configure And Quote
MSO64B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

4

Up to 32 (optional)

1 (optional)

 HKD 323,000 Configure & Quote
MSO66B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

6

Up to 48 (optional)

1 (optional)

 HKD 412,000 Configure & Quote
MSO68B

1 GHz - 10 GHz

Up to 50 GS/s

62.5 M - 1 G

8

Up to 64 (optional)

1 (optional)

 HKD 530,000 Configure & Quote
  Tektronix
6 Series MSO		 Tektronix
5 Series MSO		 Keysight
MXR-Series		 Rohde & Schwarz
RTP Series		 Rohde & Schwarz
RTO Series		 LeCroy
WavePro HD
Detailed Comparison -- -- Fact Sheet Fact Sheet Fact Sheet Fact Sheet
Number of Analog Channels 4, 6 or 8 4, 6 or 8 4 or 8 4 2 or 4 4
Bandwidth Ranges 1 GHz to 10 GHz 350 MHz to 2 GHz 500 MHz to 6 GHz 4 GHz to 16 GHz 600 MHz to 6 GHz 2.5 GHz to 8 GHz
Max Bandwidth on 4 channels 10 GHz 2 GHz 6 GHz 8 GHz 4 GHz 4 GHz
Max Bandwidth on 8 channels 5 GHz 2 GHz 6 GHz -- -- --
Upgradeable Bandwidth Yes Yes Yes Yes Yes No
Channel Input Impedance 50 Ω, 1 MΩ 50 Ω, 1 MΩ 50 Ω, 1 MΩ 50 Ω 50 Ω, 1 MΩ 50 Ω, 1 MΩ
Analog Sample Rate (on 4 Channels) Up to 25 GS/s Up to 6.25 GS/s Up to 16 GS/s Up to 20 GS/s Up to 20 GS/s Up to 10 GS/s
Analog Sample Rate (on 8 Channels) Up to 12.5 GS/s Up to 6.25 GS/s Up to 16 GS/s -- -- --
Standard Record Length (on all channels) 62.5 Mpts 62.5 Mpts 200 Mpts 50 Mpts 50 Mpts 50 Mpts
Optional Record Length 4 Ch: 1 Gpts
>4 Ch: 500 Mpts		 500 Mpts 400 Mpts 1 Gpts 1 Gpts 2.5 Gpts
Integrated Arbitrary/Function Generator 50 MHz (opt.) 50 MHz (opt.) 50 MHz (opt.) None 100 MHz (opt.) None
Digital / Logic Analysis Channels (MSO) Up to 64 (opt.) Up to 64 (opt.) 16 (opt.) 16 (opt.) 16 (opt.) 16 (opt.)
Waveform Capture Rate (wfms / Sec) >500,000 >500,000 200,000 950,000 >1,000,000 Not Available
RMS Noise, 1mV/div, at 1 GHz, 4GHz, 10GHz 54 µV, 93 µV, 201 µV 254 µV, NA, NA 73 µV, 132 µV, NA NA, 270 µV, NA 100 µV, 220 µV, NA NA, 228 µV, NA
ADC Resolution 12 bits 12 bits 10 bits 8 bits 8 bits 12 bits
Operating System Embedded OS
Windows 10 (opt.)		 Embedded OS
Windows 10 (opt.)		 Windows 10 Windows 10 Windows 7 Windows 10
Standard Probes 1 GHz Passive
3.9 pF loading		 Up to 1 GHz Passive
3.9 pF loading		 500 MHz Passive
9.5 pF loading		 None 500 MHz Passive
10 pF loading		 500 MHz Passive
10 pF loading
Standard Warranty 1 year 3 years 1 years 3 years 3 years 3 years

Power Integrity and Power Management

Today’s boards can have 20 or more power rails. Many are less than 3 V and most have noise limits. Accurate noise measurements demand special attention.

Highlights

  • Low measurement system noise
  • Compatible with low-noise TPR Series power-rail probes
  • Pairs with low-noise TPR Series power-rail probes
  • Decoding options for SVID and SPMI
  • Impedance measurements

Getting Started with Power Rail Measurements Application Note

Discover the Power Integrity Analysis Reference Solution

Jitter Analysis

Clocks are the heart of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.

Highlights

  • Standard phase noise, TIE, and frequency plots and histograms
  • Optional advanced analysis with jitter decomposition and clock recovery

Learn how to use the 6 Series MSO for Jitter Analysis

Learn the basics of Jitter Analysis

6 Series B MSO Vector Signal Analysis

Vector Signal Analysis

Conduct advanced wideband RF analysis with up to 2 GHz analysis bandwidth with SignalVu-PC Vector Signal Analysis software.

  • RF measurements
  • Modulation analysis
  • 5G NR measurements
  • Error vector magnitude
  • Pulsed RF measurements

Watch the Vector Signal Analysis Overview video

Get the details on SignalVu-PC Vector Signal Analysis Software

Serial Standards Compliance Testing

High speed digital interfaces rely on rigorous test procedures to ensure reliability and interoperability. Automated compliance testing software manages the whole testing process -- setup, making measurements, checking against limits, and generating detailed reports.

Highlights

  • Ethernet 10/100/1000BASE-T, NBASE-T and XGBT
  • Automotive Ethernet 10/100/1000BASE-T1
  • MIPI D-PHY 1.2
  • Automotive Ethernet 100/1000BASE-T1
Physical Layer Compliance Testing for 1000BASE-T Ethernet
Electromagnetic Interference Troubleshooting

Electromagnetic Interference (EMI) Troubleshooting

Each analog channel on the 6 Series MSO can show you a time domain waveform, a spectrum, or both. Time and frequency plots are synchronized to help you quickly determine which signals are the victims and which ones are the aggressors.

EMI Troubleshooting with the Latest-Generation Oscilloscopes

3-Phase Inverters, Motors and Drives

The Inverters, Motors and Drives Analysis package makes it easy to perform stable, reliable power measurements on 3-phase PWM systems.

Highlights

  • Up to 8 analog input channels
  • 3-phase wye, delta, and single-phase wiring configurations
  • Comprehensive power and harmonics measurements
  • Mechanical measurements
  • DQ0 measurements

Learn how to make measurements on 3-phase motor drives

Remote Control and Automation

Remote Control and Automation

Test automation helps you get fast, repeatable results and allows you to access your tools and data from anywhere.

  • Discover test automation resources including our free Python Drivers Package
  • KickStart simplifies data capture and logging. Supports function generators, power supplies, SMUs and more
  • *eSCope lets you control your scope over any LAN, using just a browser
  • Comprehensive, fully-supported programmable interfaces enable development of robust custom software

Learn more about TekScope PC Analysis Software

Learn more about Keithley Kickstart Software

Starter

HKD 24,000

Subscription

HKD 57,500

Perpetual

Select license option to continue

Purchase a License
  • Serial trigger, decode, search and event table analysis on I2C, SPI, RS-232/422/485/UART buses
  • Integrated Arbitrary Function Generator with 13 predefined waveform types as well as arbitrary waveforms up to 50 MHz

Learn about maintenance for software and licenses

View Brochure

Average Savings of 49%!

Get a Free Trial
Buy Software Now Questions? Contact Us

Pro

  • Includes Starter Bundle
  • Adds 250M/ch record length
  • PLUS: pick one of the following bundles

Purchase a Pro or Ultimate software bundle and get 12 months of maintenance included.

View Brochure

Average Savings of 72%!

PLUS: Choose a bundle

Buy Software Now Questions? Contact Us

Power

HKD 76,600

Subscription

HKD 192,000

Perpetual

  • Advanced Power Analysis
  • Digital Power Management Analysis
  • Double pulse testing
  • Inverter & Motor Drive Analysis with DQ0 and mechanical measurements
  • SPMI decoding
  • SVID decoding

Select license option to continue

Purchase a License
Get a Free Trial

Compliance

HKD 57,500

Subscription

HKD 141,000

Perpetual

  • 10/100/100BASE-T Ethernet with Multi-lane*
  • 2.5G/5G/10G BASE-T Ethernet*
  • 10BASE-T1L Industrial Ethernet*
  • USB2.0*
  • MIPI D-PHY 1.2*
  • MIPI D-PHY 2.1*
  • DDR3*

Select license option to continue

Purchase a License
Get a Free Trial

Automotive

HKD 59,900

Subscription

HKD 152,000

Perpetual

  • Jitter analysis
  • PAM3 analysis*
  • Signal separation*
  • 100BASE-T1 and 1000BASE-T1 compliance
  • Multi-gigabit Automotive Ethernet compliance
  • 10BASE-T1S compliance
  • MIPI D-PHY compliance
  • Inverter & motor drive analysis
  • Double pulse testing
  • 100BASE-T1 decoding
  • CAN, CAN FD decoding
  • CXPI decoding
  • FlexRay decoding
  • I3C decoding
  • LIN decoding
  • PSI5 decoding
  • SENT decoding

Select license option to continue

Purchase a License
Get a Free Trial

MilGov

HKD 59,900

Subscription

HKD 147,000

Perpetual

  • Jitter Analysis
  • Mask/Limit Testing
  • Serial T/D
  • Mil-Std-1553
  • ARINC429
  • Spacewire
  • NRZ

Select license option to continue

Purchase a License
Get a Free Trial

Serial Decode

HKD 59,900

Subscription

HKD 149,000

Perpetual

  • 1-Wire
  • Audio
  • CAN, CAN FD
  • CXPI
  • EtherCAT
  • Ethernet
  • eSPI
  • eUSB
  • FlexRay
  • I3C
  • LIN
  • Manchester
  • MDIO
  • MIPI C-PHY
  • MIPI D-PHY
  • NFC
  • NRZ
  • SDLC
  • SMBus
  • SPMI
  • SVID
  • USB 2.0

Select license option to continue

Purchase a License
Get a Free Trial

Signal Integrity

HKD 59,900

Subscription

HKD 149,000

Perpetual

  • Jitter Analysis
  • PAM3 Analysis*
  • LVDS Debug*
  • DDR3 Debug
  • Mask/Limit Testing
  • User-Defined Filters

Select license option to continue

Purchase a License
Get a Free Trial

Ultimate

HKD 115,000

Subscription

HKD 283,000

Perpetual

Select license option to continue

Purchase a License
  • Includes Starter bundle and all Pro bundles
  • PLUS: 1 G/ch record length, Spectrum View RF vs. Time waveforms, Extended Spectrum View capture bandwidth, Video Trig

Purchase a Pro or Ultimate software bundle and get 12 months of maintenance included.

View Brochure

Average Savings of 86%!

Get a Free Trial
Buy Software Now Questions? Contact Us
Back to bundles

Individual Options

Questions? Contact Us

  • Opt. 6-AFG

    Add built-in Arbitrary/Function Generator

  • Opt. 6-AUTOEN-BND

    Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100BASE-T1 Decode software

  • Opt. 6-AUTOEN-SS

    Automotive Ethernet Signal Separation

  • Opt. 6-CMAUTOEN

    Automotive Ethernet (100Base-T1, 1000Base-T1) automated compliance test application

  • Opt. 6-CMAUTOEN10

    Automotive Ethernet (10Base-T1S Short Reach ) automated compliance test solution

  • Opt. 6-CMAUTOEN10G

    Automotive Ethernet (MultiGBASE-T1) Test Automation Software. Requires 6-DJA and 6-WIN

  • Opt. 6-CMCPHY20

    MIPI C-PHY 2.0 TX Test Automation Software using TekExpress framework. Requires 6-DJA and 6-WIN.

  • Opt. 6-CMDDR3

    DDR3/LPDDR3 Compliance Test

  • Opt. 6-CMDPHY

    MIPI D-PHY 1.2 compliance test solution

  • Opt. 6-CMDPHY21

    MIPI D-PHY 2.1 Tx Test Automation Software. Requires 6-DJA and 6-WIN

  • Opt. 6-CMENET

    Ethernet (10/100/1000BASE-T) compliance test solution

  • Opt. 6-CMENETML

    Multilane Ethernet (10BASE-T, 100BASE-T, 1000BASE-T) automated compliance testing for 6 Series MSO, requires 6-CMENET and 6-WIN

  • Opt. 6-CMINDUEN10

    Industrial Ethernet (10Base-T1L Long reach) automated compliance test solution

  • Opt. 6-CMNBASET

    Ethernet (2.5/5GBASE-T) compliance test solution

  • Opt. 6-CMUSB2

    USB2.0 automated compliance test application (Requires TDSUSBF USB test fixture). ≥2.5 GHz bandwidth required for high-speed USB

  • Opt. 6-CMXGBT

    Ethernet (10GBASE-T) compliance test solution

  • Opt. 6-DBDDR3

    DDR3/LPDDR3 analysis and debug solution

  • Opt. 6-DBLVDS

    Automated LVDS test solution for 6 Series MSO oscilloscopes

  • Opt. 6-DJA

    Simplifies identifying signal integrity concerns, jitter and their related sources and provides the highest sensitivity and accuracy available for real-time oscilloscopes

  • Opt. 6-DPM

    Digital Power Management

  • Opt. 6-IMDA

    Inverters, motors and drives analysis

  • Opt. 6-IMDA-DQ0

    DQ0 analysis for IMDA

  • Opt. 6-IMDA-MEC

    Mechanical measurements for Inverters, Motors and Drives analysis

  • Opt. 6-MTM

    Mask Testing

  • Opt. 6-PAM3

    PAM3 Analysis

  • Opt. 6-PWR

    Power measurement and analysis

  • Opt. 6-RFNFC

    NFC wireless protocol decoding and search

  • Opt. 6-RL-1

    Extend record length to 125 Mpoints/channel

  • Opt. 6-RL-2

    Extend record length to 250 Mpoints/channel

  • Opt. 6-RL-3

    Extend record length to 500 Mpoints/channel

  • Opt. 6-RL-4

    Extend record length to 1 Gpoints/channel

  • Opt. 6-SEC

    Add password-protected enabling and disabling of all communication ports and firmware upgrades

  • Opt. 6-SR8B10B

    8b10b protocol decoding and analysis

  • Opt. 6-SRAERO

    MIL-STD-1553 and ARINC 429 protocol trigger and decode of serial packet content

  • Opt. 6-SRAUDIO

    I2S, LJ, RJ, and TDM protocol trigger and decode of serial packet content

  • Opt. 6-SRAUTO

    CAN, LIN, and FlexRay protocol trigger and decode of serial packet content

  • Opt. 6-SRAUTOEN1

    100BASE-T1 Protocol Decode

  • Opt. 6-SRAUTOSEN

    SENT prototcol trigger and decode of serial packet content

  • Opt. 6-SRCOMP

    RS-232/422/485/UART protocol trigger and decode of serial packet content

  • Opt. 6-SRCPHY

    MIPI C-PHY protocol decoding and analysis

  • Opt. 6-SRCXPI

    CXPI protocol decoding and analysis

  • Opt. 6-SRDPHY

    MIPI D-PHY 1.2 (CSI-2, DSI-1) decoding and analysis

  • Opt. 6-SREMBD

    I2C and SPI protocol trigger and decode of serial packet content

  • Opt. 6-SRENET

    10BASE-T and 100BASE-TX protocol search and decode of serial packet content

  • Opt. 6-SRESPI

    eSPI protocol decoding and analysis

  • Opt. 6-SRETHERCAT

    EtherCAT protocol decoding and analysis

  • Opt. 6-SREUSB2

    eUSB2 protocol decoding and analysis

  • Opt. 6-SRI3C

    MIPI I3C protocol search and decode of serial packet content

  • Opt. 6-SRMANCH

    Manchester protocol decoding and analysis

  • Opt. 6-SRMDIO

    MDIO protocol decoding and analysis

  • Opt. 6-SRNRZ

    NRZ Protocol Decoder and Search

  • Opt. 6-SRONEWIRE

    1-Wire protocol decoding and analysis

  • Opt. 6-SRPM

    SPMI prototcol trigger and decode of serial packet content

  • Opt. 6-SRPSI5

    PSI5 serial decode and analysis

  • Opt. 6-SRSDLC

    Synchronous data link control (SDLC) decoding and analysis

  • Opt. 6-SRSMBUS

    SMBus protocol decoding and analysis

  • Opt. 6-SRSPACEWIRE

    SpaceWire protocol decoding and analysis

  • Opt. 6-SRSVID

    SVID protocol decoding and analysis

  • Opt. 6-SRUSB2

    USB2.0 protocol trigger and decode of serial packet content.

  • Opt. 6-SV-BW-1

    Increase Spectrum View Capture Bandwidth to 2 GHz

  • Opt. 6-SV-RFVT

    Spectrum View RF versus time analysis and trigger

  • Opt. 6-UDFLT

    User-defined filter creation tool

  • Opt. 6-VID

    Analog video trigger (NTSC, PAL, SECAM)

  • Opt. 6-WBG-DPT

    Wide bandgap (SiC/GaN) double pulse test application

  • Opt. 6-WIN

    Add solid state drive with Windows 10 license

* Indicates features that require 6-WIN

Access Digital Channels

Upgrade Description Purchasing Details
TLP058 Logic Probe Each probe accesses 8 digital channels on any FlexChannel input Request a quote on this probe

Add Instrument Functions

Upgrade Description Purchasing Details
SUP6-AFG Add arbitrary function generator Request trial license

Request a quote
SUP6-DVM Add digital voltmeter / trigger frequency counter Software upgrade license file provided upon registration.
Register now.
SUP6-RL-1 Extend record length to 125 Mpts / channel Request trial license

Request a quote
SUP6-RL-1T2 Extent record length from 125 Mpts/channel to 250 Mpts/channel Request trial license

Request a quote
SUP6-RL-2 Extend record length to 250 Mpts / channel Request trial license

Request a quote
SUP6-RL-3 Extend record length from 62.5 M/ch to 500 M/ch Request trial license

Request a quote
SUP6-RL-1T3 Extend record length from 125 M/ch to 500 M/ch Request trial license

Request a quote
SUP6-RL-2T3 Extend record length from 250 M/ch to 500 M/ch Request trial license

Request a quote
SUP6-RL-4 Extend record length from 62.5 M/ch to 1 G/ch Request trial license

Request a quote
SUP6-RL-1T4 Extend record length from 125 M/ch to 1 G/ch Request trial license

Request a quote
SUP6-RL-2T4 Extend record length from 250 M/ch to 1 G/ch Request trial license

Request a quote
SUP6-RL-3T4 Extend record length from 500 M/ch to 1 G/ch Request trial license

Request a quote
SUP6B-LNX Expansion solid state drive with embedded operating system No trial available

Request a quote
SUP6B-WIN Expansion solid state drive with Windows 10 license No trial available

Request a quote

Add Protocol Analysis

Upgrade Description Purchasing Details
SUP6-RFNFC NFC wireless protocol decoding and search Request trial license

Request a quote
SUP6-SR8B10B 8b10b Protocol Decoder and Search Request trial license

Request a quote
SUP6-SRAERO Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429) Request trial license

Request a quote
SUP6-SRAUDIO Audio serial triggering and analysis (I 2S, LJ, RJ, TDM) Request trial license

Request a quote
SUP6-SRAUTO Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay) Request trial license

Request a quote
SUP6-SRAUTOEN1 100BASE-T1 automotive Ethernet protocol decode software Request trial license

Request a quote
SUP6-SRAUTOSEN Automotive sensor serial triggering and analysis (SENT) Request trial license

Request a quote
SUP6-SRCOMP Computer serial  triggering and analysis (RS-232/422/485/UART) Request trial license

Request a quote
SUP6-SRCPHY MIPI C-PHY protocol decoding and analysis Request trial license

Request a quote
SUP6-SRETHERCAT EtherCAT protocol decoding and analysis Request trial license

Request a quote
SUP6-SRCXPI CXPI protocol decoding and analysis Request trial license

Request a quote
SUP6-SRDPHY MIPI D-PHY 1.2 (CSI-2, DSI-1) decoding and analysis Request trial license

Request a quote
SUP6-SREMBD Embedded serial triggering and analysis (I 2C, SPI) Request trial license

Request a quote
SUP6-SRENET Ethernet serial triggering and analysis (10Base-T, 100Base-TX) Request trial license

Request a quote
SUP6-SRESPI eSPI protocol decoding and analysis Request trial license

Request a quote
SUP6-SREUSB2 eUSB2 protocol decoding and analysis Request trial license

Request a quote
SUP6-SRI3C MIPI I3C decoding and analysis Request trial license

Request a quote
SUP6-SRMANCH Manchester protocol decoding and analysis Request trial license

Request a quote
SUP6-SRMDIO MDIO protocol decoding and analysis Request trial license

Request a quote
SUP6-SRNRZ NRZ Protocol Decoder and Search Request trial license

Request a quote
SUP6-SRONEWIRE 1-Wire protocol decoding and analysis Request trial license

Request a quote
SUP6-SRPM Power Management serial triggering and analysis (SPMI) Request trial license

Request a quote
SUP6-SRPSI5 PSI5 serial decode and analysis Request trial license

Request a quote
SUP6-SRSDLC Synchronous Data Link Control protocol decoding and analysis Request trial license

Request a quote
SUP6-SRSMBUS SMBus protocol decoding and analysis Request trial license

Request a quote
SUP6-SRSPACEWIRE SpaceWire protocol decoding and analysis Request trial license

Request a quote
SUP6-SRSVID SVID protocol decoding and analysis Request trial license

Request a quote
SUP6-SRUSB2 USB 2.0 serial bus triggering and analysis (LS, FS, HS) (≥ 1 GHz model recommended for HS) Request trial license

Request a quote

Add Serial Compliance Testing

Upgrade Description Purchasing Details
SUP6-AUTOEN-BND Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100BASE-T1 Decode software Request trial license

Request a quote
SUP6-AUTOEN-SS Signal Separation Solution (Min BW 1 GHz) using TekExpress Automation Platform Request trial license

Request a quote
SUP6-CMINDUEN10 Industrial Ethernet (10Base-T1L Long reach) automated compliance test solution Request trial license

Request a quote
SUP6-PAM3 PAM3 Automated Compliance Solution (Min BW 1 GHz) using TekExpress Automation Platform Request trial license

Request a quote
SUP6-CMAUTOEN Automotive Ethernet (100Base-T1 and 1000BASE-T1) automated compliance test solution Request trial license

Request a quote
SUP6-CMAUTOEN10 Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution Request trial license

Request a quote
SUP6-CMAUTOEN10G Automotive Ethernet (Multi-gigabit) automated compliance test solution

Request trial license

Request a quote
 SUP6-CMCPHY20 MIPI C-PHY 2.0 Tx automated conformance test solution (requires option 6-DJA) Request trial license

Request a quote
SUP6-CMUSB2 USB 2.0 automated pre-compliance test solution Request trial license

Request a quote
SUP6-CMENET Ethernet (10/100/1000BASE-T) compliance test solution Request trial license

Request a quote
SUP6-CMENETML Multilane Ethernet (10BASE-T, 100BASE-T, 1000BASE-T) automated compliance testing for 6 Series MSO, requires 6-CMENET and 6-WIN Request trial license

Request a quote
SUP6-CMDPHY MIPI D-PHY 1.2 compliance test solution Request trial license

Request a quote
SUP6-CMDPHY21 MIPI D-PHY 2.1 test automation software. Requires 6-DJA and 6-WIN Request trial license

Request a quote
SUP6-CMDPHY21UP MIPI D-PHY 2.1 test automation software, upgrade from D-PHY 1.2 Request trial license

Request a quote
SUP6-CMNBASET Ethernet (2.5/5GBASE-T) compliance test solution Request trial license

Request a quote
SUP6-CMXGBT Ethernet (10GBASE-T) compliance test solution Request trial license

Request a quote
SUP6-DBLVDS Automated LVDS test solution for 6 Series MSO oscilloscopes Request trial license

Request a quote

Add Advanced Analysis

Upgrade Description Purchasing Details
SUP6-DPM Digital power management analysis software Request trial license

Request a quote
SUP6-DJA Advanced jitter and eye analysis Request trial license

Request a quote
SUP6B-IMDA Inverters, motors and drives analysis Request trial license

Request a quote
SUP6B-IMDA-DQ0 DQ0 analysis for IMDA Request trial license

Request a quote
SUP6B-IMDA-MECH Mechanical measurements for Inverters, Motors and Drives Request trial license

Request a quote
SUP6-MTM Mask and limit testing Request trial license

Request a quote
SUP6-PWR Power analysis Request trial license

Request a quote
SUP6-SV-BW-1 Increase Spectrum View Capture Bandwidth to 2 GHz Request trial license

Request a quote
SUP6-SV-RFVT Spectrum View RF versus time analysis and trigger Request trial license

Request a quote
SUP6-UDFLT User-defined filter creation tool Request trial license

Request a quote
SUP6-VID Analog video trigger (NTSC, PAL, SECAM) Request trial license

Request a quote
SUP6-WBG-DPT Wide bandgap (SiC/GaN) double pulse test application Request trial license

Request a quote

Upgrade Bandwidth

Upgrade Description Purchasing Details
SUP6B-BW4 Bandwidth upgrade for 6 Series B MSO with 4 FlexChannel inputs.  See datasheet for options.
SUP6B-BW6 Bandwidth upgrade for 6 Series B MSO with 6 FlexChannel inputs.  See datasheet for options.
SUP6B-BW8 Bandwidth upgrade for 6 Series B MSO with 8 FlexChannel inputs.  See datasheet for options.

Add Memory Debug and Compliance

Upgrade Description Purchasing Details
SUP6-DBDDR3 DDR3 memory debug solution Request trial license

Request a quote
SUP6-CMDDR3 DDR3 / LPDDR3 Compliance Test Request trial license

Request a quote
Current Probes
Datasheet Link Probe Description Configure and Quote
TCP0020 Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP0030A Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCP0150 Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI Configure & Quote
View Datasheet TCP312A Probe, AC/DC Current; 30 Amp DC, DC-100MHZ, Certificate of Traceable Calibration Standard Configure & Quote
View Datasheet TCPA300 Current Probe: 100 MHz, Amplifier (Requires Probe) Configure & Quote
High Voltage Differential Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet TDP0500 Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
View Datasheet TDP1000 Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI Configure & Quote
View Datasheet THDP0100 Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
View Datasheet THDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE Configure & Quote
View Datasheet TMDP0200 Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200 Configure & Quote
High Voltage Probe: Single-Ended
Datasheet Link Probe Description Configure and Quote
View Datasheet TPP0850 High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI Configure & Quote
IsoVu Isolated Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet TIVP02 IsoVu Gen. 2 optically isolated differential probe, 200 MHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
View Datasheet TIVP02L IsoVu Gen. 2 optically isolated differential probe, 200 MHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
View Datasheet TIVP05 IsoVu Gen. 2 optically isolated differential probe, 500 MHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
View Datasheet TIVP05L IsoVu Gen. 2 optically isolated differential probe, 500 MHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
View Datasheet TIVP1 IsoVu Gen. 2 optically isolated differential probe, 1 GHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
View Datasheet TIVP1L IsoVu Gen. 2 optically isolated differential probe, 1 GHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip Configure & Quote
Logic Probe
Datasheet Link Probe Description Configure and Quote
TLP058 8 channel general purpose logic probe for 5 and 6 Series MSO oscilloscopes. Includes accessory kit. Configure & Quote
Low Voltage Differential Oscilloscope Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet TDP1500 Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI Configure & Quote
View Datasheet TDP3500 Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI Configure & Quote
View Datasheet TDP4000 4 GHz, Differential Probe with TekVPI interface Configure & Quote
View Datasheet TDP7704 4 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface Configure & Quote
View Datasheet TDP7706 6 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface Configure & Quote
View Datasheet TDP7708 8 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface Configure & Quote
View Datasheet TDP7710 10 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface Configure & Quote
Low Voltage Probes: Single-Ended
Datasheet Link Probe Description Configure and Quote
View Datasheet TAP1500 Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
View Datasheet TAP2500 Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
View Datasheet TAP3500 Active Probe: 3.5 GHz, 10X, Single-ended, TekVPI Configure & Quote
View Datasheet TAP4000 4 GHz, Single Ended Probe with TekVPI interface Configure & Quote
Passive Probe
Datasheet Link Probe Description Configure and Quote
View Datasheet TPP0502 Passive Probe: 500 MHz, 2X, TekVPI Configure & Quote
View Datasheet TPP1000 Passive Probe: 1 GHz, 10X, TekVPI Configure & Quote
Power Rail Probes
Datasheet Link Probe Description Configure and Quote
View Datasheet TPR1000 1 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit Configure & Quote
View Datasheet TPR4000 4 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit Configure & Quote
Accessory HC5
Datasheet Description
View Datasheet Hard transit case for the 5 and 6 Series MSO
Accessory RM5
Datasheet Description
View Datasheet Rackmount kit for the 5 and 6 Series MSO
Datasheet Accessory Description
HC5 Hard transit case for the 5 and 6 Series MSO
RM5 Rackmount kit for the 5 and 6 Series MSO

Tektronix offers a range of calibration and warranty extension plans for purchase with your instrument to protect and maintain its performance over the years. With benefits from priority service to OEM expert maintenance to accident protection, invest now to avoid unplanned downtime and expense. Talk to your sales rep about adding a service plan to your instrument purchase.

Tektronix calibration warranty and extension plans

Protect Your Investment, Protect Your Uptime

Configure & Quote


Service Plan Feature		 Total Protection
(Opt. T3, T5)		 Tek Care
(Opt. R3, R5)
Extension of factory warranty
Protection from manufacturer defects
Free factory certified calibration with repair (if necessary)
Free in-country shipping
Priority on-bench service
Coverage of user-caused EOS and ESD damage
Coverage from accidental damage
Coverage from normal wear and tear

Maintain Accuracy, Get Updates, Pass Audits

Configure & Quote


Calibration Features:		 Z540
Calibration1		 ISO 17025
Compliant1		 ISO 17025
Accredited
Certificate of calibration and calibration label designed to meet audit requirements
Firmware updates, if applicable, along with safety and reliability updates ²
OEM procedures for measurements ²
Test data Optional
Calibration record retention
Traceability
Uncertainty analysis
Independent verification by a ISO/IEC accredited organization (with logo on certificate)

Product/Option		 Description
Tektronix Opt. C3 Calibration service 3 years. C3 provides for 2 calibration events during 3 years after shipment.  Includes traceable calibration or functional verification where applicable, for recommended calibrations.  Coverage includes the initial calibration plus 2-years calibration coverage.
Tektronix Opt. C5 Calibration service 5 years. C5 provides for 4 calibration events during 5 years after shipment.  Includes traceable calibration or functional verification where applicable, for recommended calibrations.  Coverage includes the initial calibration plus 4-years calibration coverage.

1 May be ISO 9001 in specific locations.

2 Standard with factory certified service.

Some limits apply, see program terms for details.

Need to Calibrate More than Just Your 6 Series?

See Calibration Services

Tektronix is a leading accredited calibration services provider for all brands of electronic test and measurement equipment, servicing more than 140,000 models from 9,000 manufacturers. With 100+ labs worldwide, Tektronix serves as your single global partner delivering tailored calibration programs with OEM quality at a market price. Onsite, local pickup and delivery, and other options available.

Tektronix Calibration Services
