DPO70000SX ATI Performance Oscilloscope
DPO70000SX ATI Performance Oscilloscopes deliver the industry’s most accurate capture of high-speed signal behavior to verify, validate and characterize your next generation designs. Capture up to 70 GHz signals with the lowest noise and highest fidelity, ensuring the most accurate measurements of your signal’s true characteristics.
Bandwidth
13 GHz - 70 GHz
Record Length
Up to 1G points
Analog Channels
1 to 16
Sample Rate
Up to 200 GS/s

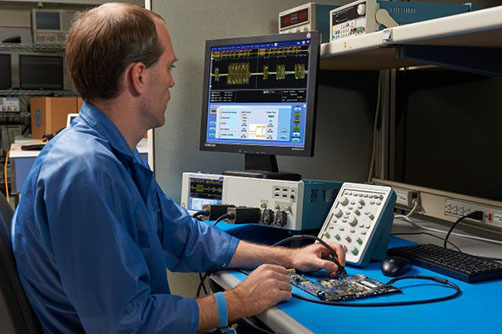

Highest signal integrity.
ATI technology is at the leading edge of signal fidelity, minimizing noise to give the most accurate measurement results on your next generation designs.
Highlights
- Low-noise ATI architecture
- High performance trigger system to isolate signal flaws
- Tightest timing accuracy
- Precision time base accuracy
- Channel-to-channel skew/timing
- Multi-unit system timing accuracy and stability
- Low-noise optical measurements with the DPO7OE1/DPO7OE2 optical probes

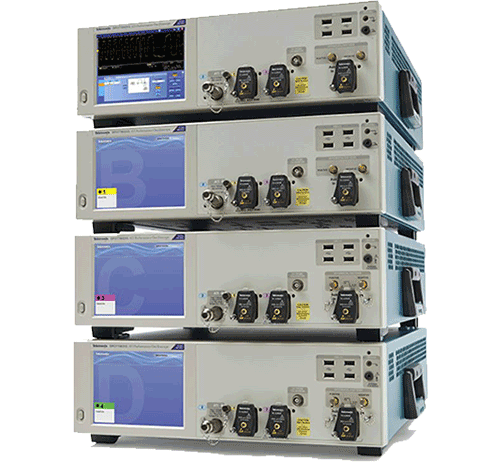

Flexible. Versatile. Scalable.
Innovative UltraSync architecture provides configuration flexibility, allowing you to easily add acquisition channels and maintain channel-to-channel timing accuracy.
Room to Grow Boosting Oscilloscope Scalability
Highlights
- Deploy units individually
- Easily aggregate into a multi-unit system
- Quickly reconfigure system
- Configure up to 16 synchronized optical acquisition channels with the DPO7OE1/DPO7OE2 probes
- Automate testing with our Python Driver Package
Measurement and analysis tools that keep you on track.
Application support packages for the DPO70000SX provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.

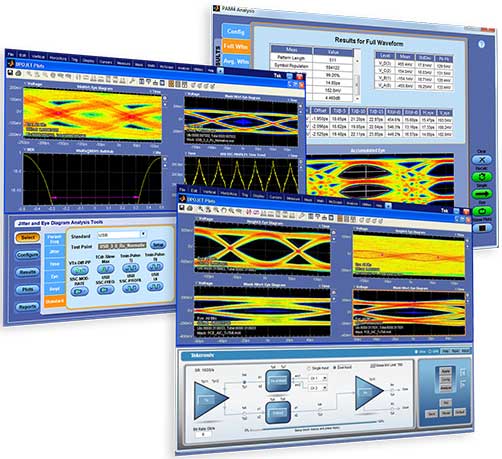

Accurate Jitter & Timing Analysis with DPOJET
Highlights
- DPOJET: the most comprehensive, flexible measurement tool available
- SDLA: the most powerful, complete tool for analyzing and compensating for signal affects in serial data links
- Simple, extensive PAM4 analysis – without needing external CR
- Support for full suite of Gen1-6+ high-speed serial standards
- Automated compliance testing for complete, reliable, repeatable results
- Powerful debugging tools to quickly uncover/fix design challenges

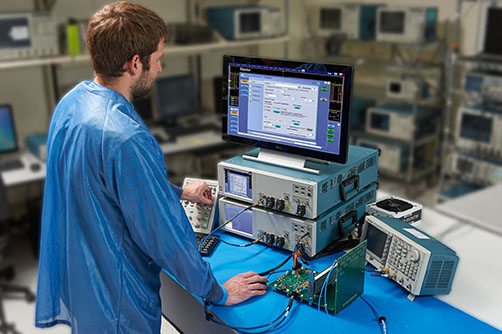

Know-how. Right now.
The Tektronix application engineering team goes onsite, providing expert-level support for measurement connectivity, oscilloscope operation and analysis tool insights. From introduction to adoption to integration of highly complex measurement processes in your lab or manufacturing operation, we’re here for you.
Select Your DPO70000SX Service Plan
DPO70000SX Online Product Support Center
Highlights
- Multiple levels of service, including Gold Care for the most comprehensive protection
- Get installation help, training and problem solving support
- Worldwide Technical Support Center provides real-time access to a central knowledge pool
| Model | Description | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | List Price | Configure And Quote |
|---|---|---|---|---|---|---|---|
| DPO73304SX | Single-unit |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 2 at 33 GHz, 4 at 23 GHz | - | Configure & Quote |
| DPO71604SX | Single-unit |
16 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 16 GHz, 4 at 16 GHz |
- | Configure & Quote |
| DPO77002SX | Single-unit |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 1 at 70 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPO71304SX | Single-unit |
13 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 13 GHz, 4 at 13 GHz |
- | Configure & Quote |
| DPO75002SX | Single-unit |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 50 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPO72304SX | Single-unit |
23 GHz | 100 GS/s, 50 GS/s | 62.5M points - 1G points | 2 at 23 GHz, 4 at 23 GHz | - | Configure & Quote |
| DPO72004SX | Single-unit |
20 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 20 GHz, 4 at 20 GHz |
- | Configure & Quote |
| DPS77004SX | Two-unit system |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 2 at 70 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPS73308SX | Two-unit system |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 4 at 33 GHz, 8 at 23 GHz (Max 4 displayed on-screen, additional data through program interface) | - | Configure & Quote |
| DPS75004SX | Two-unit system |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 50 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPO75902SX | Single-unit |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 59 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPS75904SX | Two-unit system |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 59 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPO72504SX | Single-unit |
25 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 25 GHz, 4 at 23 GHz |
- | Configure & Quote |
| Model | Description | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | List Price | Configure And Quote |
|---|---|---|---|---|---|---|---|
| DPO73304SX | Single-unit |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 2 at 33 GHz, 4 at 23 GHz | - | Configure & Quote |
| DPO71604SX | Single-unit |
16 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 16 GHz, 4 at 16 GHz |
- | Configure & Quote |
| DPO77002SX | Single-unit |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 1 at 70 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPO71304SX | Single-unit |
13 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 13 GHz, 4 at 13 GHz |
- | Configure & Quote |
| DPO75002SX | Single-unit |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 50 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPO72304SX | Single-unit |
23 GHz | 100 GS/s, 50 GS/s | 62.5M points - 1G points | 2 at 23 GHz, 4 at 23 GHz | - | Configure & Quote |
| DPO72004SX | Single-unit |
20 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 20 GHz, 4 at 20 GHz |
- | Configure & Quote |
| DPS77004SX | Two-unit system |
70 GHz | 200 GS/s, 100 GS/s | 62.5M points – 1G points | 2 at 70 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPS73308SX | Two-unit system |
33 GHz | 100 GS/s, 50 GS/s | 62.5M points – 1G points | 4 at 33 GHz, 8 at 23 GHz (Max 4 displayed on-screen, additional data through program interface) | - | Configure & Quote |
| DPS75004SX | Two-unit system |
50 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 50 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPO75902SX | Single-unit |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 1 at 59 GHz, 2 at 33 GHz | - | Configure & Quote |
| DPS75904SX | Two-unit system |
59 GHz | 200 GS/s, 100 GS/s | 62.5M points - 1G points | 2 at 59 GHz, 4 at 33 GHz | - | Configure & Quote |
| DPO72504SX | Single-unit |
25 GHz |
100 GS/s, 50 GS/s |
62.5M points - 1G points |
2 at 25 GHz, 4 at 23 GHz |
- | Configure & Quote |

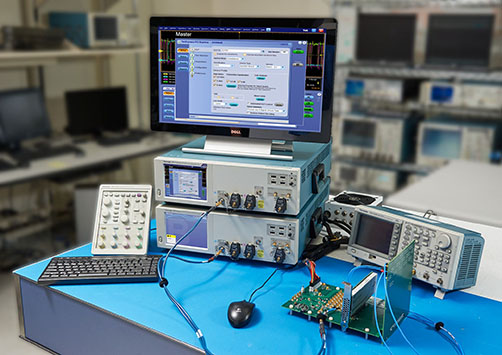

High Speed Serial Communications
Want to measure to current and emerging standards and reduce your time to market? We can help. With decades of experience on committees and a commitment to creating state-of-the-art software packages, Tektronix supports you through the introduction and adoption of cutting-edge standards.
High Speed Serial Standards Support
Highlights
- Compliance testing and debugging for PCIe, SATA/SAS, USB Type-C, Thunderbolt Type-C and DisplayPort Type-C, HDMI, DDR, LPDDR and MIPI
- Hardware serial trigger of 8b/10b and 64b/66b data and NRZ bit patterns to 14.1 Gbps for diagnostic and debug work

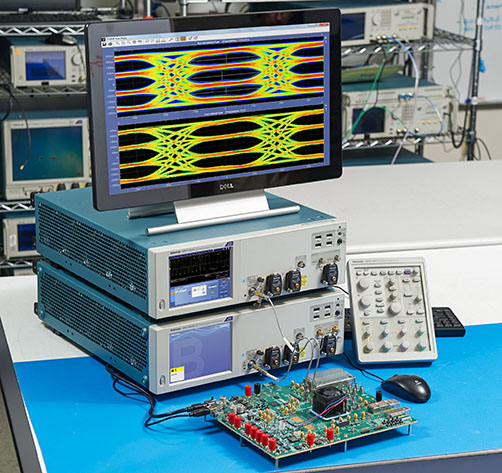

Data Communications
Comprehensive Tx and Rx testing support for 100G and 400G standards, plus testing guidance for both NRZ and PAM4 signaling – so your team can tackle the next wave of data comm technologies.
Solutions for Next Wave Data Comm Technologies
Highlights
- Debugging of complex 100G Link Training sequences
- Characterize PAM4 and NRZ signals
- Perform IEEE and OIF-CEI compliant measurements
- Both optical and electrical measurements available

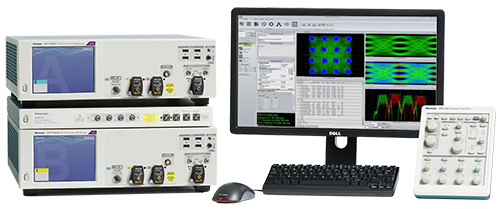

Coherent Optical
Get ready to tackle 400G and 1 Terabit long haul communications system work with the scalable architecture and low noise performance of the DPO70000SX Series Oscilloscope.
Discover Coherent Optical Solutions
Highlights
- Coherent Optical Modulation: Easily modulate complex signals with support for dual polarization, multi-level signals and automatic bias control
- Coherent Optical Analysis: Make fast and repeatable complex modulation measurements with the industry’s most customizable analysis tools
- New ArmA,TrigB feature supports carefully controlled timing of acquisitions for Recirculating Loop testing

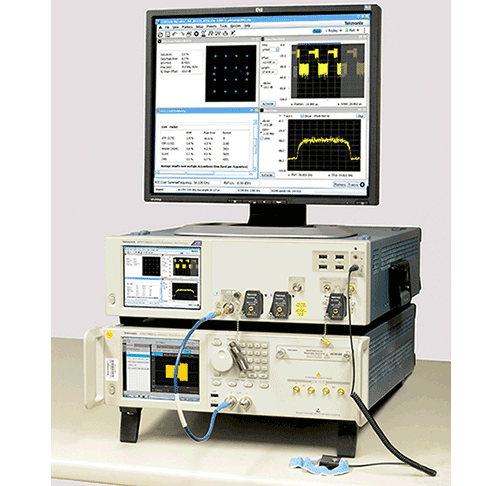

Wideband RF
Gather data faster for your wideband RF research with ultra-wide bandwidths, easier signal connectivity and the flexibility to perform open-ended online and offline analysis of RF signal behavior.
Highlights
- The only wideband oscilloscope on the market with an RF envelope trigger
- Robust pulse analysis and demodulation tools available with SignalVu spectral analysis package
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | A622 | Current Probe: 100 kHz, 10 mA to 100 A, AC/DC, BNC | Configure & Quote |
| View Datasheet | CT1 | CURRENT XMFR; 1GHZ 12A W/PROBE - STATEMENT OF COMPLIANCE | Configure & Quote |
| View Datasheet | CT2 | CURRENT XMFR; 200MHZ 36A W/PROBE - STATEMENT OF COMPLIANCE WITH THIS PRODUCT | Configure & Quote |
| View Datasheet | CT6 | CT6 PROBE; CURRENT PROBE, HIGH FREQ/SMALL GEOMETRY - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| View Datasheet | P6021A | Probe, AC Current; 250 Amp AC, 60 MHz, 5 FT w/Term Safety Controlled | Configure & Quote |
| View Datasheet | P6022 | Current Probe: 120 MHz, 1 mA to 3 A, AC, BNC | Configure & Quote |
| TCP2020 | CURRENT PROBE; DC COUPLED, 50 MHZ BW, 20 A, BNC interface | Configure & Quote | |
| View Datasheet | TCP303 | PROBE; AC/DC CURRENT; DC-15MHZ,150A DC, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| View Datasheet | TCP305A | Probe, AC/DC Current; 50Amp DC, DC-50MHZ, Certificate of Traceable Calibration Standard | Configure & Quote |
| View Datasheet | TCP312A | Probe, AC/DC Current; 30 Amp DC, DC-100MHZ, Certificate of Traceable Calibration Standard | Configure & Quote |
| View Datasheet | TCP404XL | PROBE; AC/DC CURRENT, DC-2MHZ, 500A DC, 750A DC DERATED WITH DUTY CYCLE,CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| View Datasheet | TCPA300 | Current Probe: 100 MHz, Amplifier (Requires Probe) | Configure & Quote |
| View Datasheet | TCPA400 | Current Probe: 50 MHz, Amplifier (Requires Probe) | Configure & Quote |
| View Datasheet | TRCP0300 | Current Probe: 30 MHz, 250 mA to 300 A, AC-Only, BNC Interface | Configure & Quote |
| View Datasheet | TRCP0600 | Current Probe: 30 MHz, 500 mA to 600 A, AC-Only, BNC Interface | Configure & Quote |
| View Datasheet | TRCP3000 | Current Probe: 16 MHz, 500 mA to 3000 A, AC-Only, BNC Interface | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | P5200A | High Voltage Probe: 50 MHz, 50X/500X, 1.3 kV, Differential, BNC | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | P5100A | High Voltage Probe: 500 MHz, 100X, 2.5 kV, Single-ended, BNC | Configure & Quote |
| P5122 | High Voltage Probe: 200 MHz, 100X, 1 kVRMS CAT II, Single-ended, BNC, SAFETY CONTROLLED | Configure & Quote | |
| P5150 | High Voltage PROBE; 50X, 500 MHZ, 2.5 kV | Configure & Quote | |
| P6015A | PROBE HIVOLTAGE; 75MHZ,40KV,1000X 10 FT - CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | P7504 | 4GHz TRIMODE DIFFERENTIAL PROBE | Configure & Quote |
| View Datasheet | P7506 | 6GHz TRIMODE DIFFERENTIAL PROBE | Configure & Quote |
| View Datasheet | P7508 | 8GHz TRIMODE DIFFERENTIAL PROBE | Configure & Quote |
| View Datasheet | P7513A | 13GHz TRIMODE DIFFERENTIAL PROBE | Configure & Quote |
| View Datasheet | P7516 | TRIMODE DIFFERENTIAL PROBE. CERTIFICATE OF TRACEABLE CALIBRATION STANDARD WITH PRODUCT. | Configure & Quote |
| View Datasheet | P7520A | TriMode Differential Probe | Configure & Quote |
| View Datasheet | P7625 | 25 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES | Configure & Quote |
| View Datasheet | P7633 | 33 GHz LOW NOISE TRIMODE PROBE IN CASE WITH ACCESSORIES | Configure & Quote |
| View Datasheet | P7708 | 8 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7713 | 13 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7716 | 16 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| View Datasheet | P7720 | 20 GHz TriMode Probe with TekFlex connector technology, TekConnect interface | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | DPO7OE1 | 33GHz, single/multi-mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 750nm - 1650nm | Configure & Quote |
| View Datasheet | DPO7OE2 | 59GHz, single mode optical probe for MSO/DPO70000 Real Time Oscilloscopes. Wavelength range: 1200nm - 1650nm | Configure & Quote |
| Datasheet Link | Probe | Description | Configure and Quote |
|---|---|---|---|
| View Datasheet | P2221 | Passive Probe: 200 MHz, 1X/10X, BNC | Configure & Quote |
| View Datasheet | P3010 | Probe,Passive; 100MHz, 10X, with Readout, for TDS3000 Series | Configure & Quote |
| View Datasheet | P5050B | PASSIVE PROBE; 10X 500 MHZ PASSIVE VOLTAGE PROBE; COVERED BNC | Configure & Quote |
| View Datasheet | P6101B | Probe, Passive; 15 MHz, 1X | Configure & Quote |
| View Datasheet | P6139B | Passive Probe: 500 MHz, 10X, BNC | Configure & Quote |
| View Datasheet | TPP0100 | Passive Probe: 100 MHz, 10X, BNC | Configure & Quote |
| View Datasheet | TPP0200 | Passive Probe: 200 MHz, 10X, BNC | Configure & Quote |
Accessory
119-9725-00
Datasheet
Description
View Datasheet
Additional AC/DC power supply
Accessory
DPO7AFP
Datasheet
Description
View Datasheet
Auxiliary Front Panel
Accessory
DPO7RFC1
Datasheet
Description
Phase-matched Cable Pair, 67 GHz, 1.85mm, male-male, 24
Accessory
DPO7RFC2
Datasheet
Description
Phase-stable Coaxial Cable, 67 GHz, 1.85mm, male-male, 24
Accessory
DPO7RFC3
Datasheet
Description
Phase-stable Coaxial Cable, 67 GHz, 1.85mm, male-male , 36
Accessory
DPO7RFK1
Datasheet
Description
RF Attenuator Kit; 1 ea. 3dB, 6dB, 10dB, 20dB Atten., 67 GHz, 1.85mm
Accessory
DPO7RFK2
Datasheet
Description
RF Signal Path Kit; 1 ea. 3dB, 6dB, 10dB, 20dB Atten., 1 ea. V(m)-V(m), V(m)-K(f), V(f)-K(m), V(f)-K(f) Adapter, (1) DC Block, 67 GHz, 1.85mm
Accessory
DPO7RFK3
Datasheet
Description
RF Channel Timing De-skew Kit; (1) Precision Power Divider, DC to 65 GHz, 1.85mm, female x 3, (1) V(m)-V(m) Adapter, 67 GHz, 1.85mm
Accessory
DPO7USYNC1M
Datasheet
Description
View Datasheet
DPO70000SX multi-unit synchronization cable; 1 meter length
Accessory
DPO7USYNC2M
Datasheet
Description
View Datasheet
DPO70000SX multi-unit synchronization cable; 2 meter length
Accessory
Opt. SSD
Datasheet
Description
View Datasheet
Upgrade options include a variety of spare or replacement SSDs for DPO70000SX oscilloscopes
| Datasheet | Accessory | Description |
|---|---|---|
| 119-9725-00 | Additional AC/DC power supply |
|
| DPO7AFP | Auxiliary Front Panel | |
| View Datasheet | DPO7RFC1 | Phase-matched Cable Pair, 67 GHz, 1.85mm, male-male, 24 |
| View Datasheet | DPO7RFC2 | Phase-stable Coaxial Cable, 67 GHz, 1.85mm, male-male, 24 |
| View Datasheet | DPO7RFC3 | Phase-stable Coaxial Cable, 67 GHz, 1.85mm, male-male , 36 |
| View Datasheet | DPO7RFK1 | RF Attenuator Kit; 1 ea. 3dB, 6dB, 10dB, 20dB Atten., 67 GHz, 1.85mm |
| View Datasheet | DPO7RFK2 | RF Signal Path Kit; 1 ea. 3dB, 6dB, 10dB, 20dB Atten., 1 ea. V(m)-V(m), V(m)-K(f), V(f)-K(m), V(f)-K(f) Adapter, (1) DC Block, 67 GHz, 1.85mm |
| View Datasheet | DPO7RFK3 | RF Channel Timing De-skew Kit; (1) Precision Power Divider, DC to 65 GHz, 1.85mm, female x 3, (1) V(m)-V(m) Adapter, 67 GHz, 1.85mm |
| DPO7USYNC1M | DPO70000SX multi-unit synchronization cable; 1 meter length | |
| DPO7USYNC2M | DPO70000SX multi-unit synchronization cable; 2 meter length | |
| Opt. SSD | Upgrade options include a variety of spare or replacement SSDs for DPO70000SX oscilloscopes |
Tektronix offers a range of calibration and warranty extension plans for purchase with your instrument to protect and maintain its performance over the years. Benefits include:
- OEM quality maintenance
- Priority on-bench service
- A host of accident protection, loaner program, and other program features
- A breadth of calibration service levels and options
Invest now to avoid unplanned downtime and expense. Talk to your sales rep about adding a service plan to your instrument purchase.
Protect Your Investment, Protect Your Uptime
| Service Plan Feature |
Tek Care (Opt. R3, R5) |
Gold Care (Opt. G3, G5) |
|---|---|---|
| Extension of factory warranty |
 |
|
| Protection from manufacturer defects |
|
|
| Free factory certified calibration with repair (if necessary) |
|
|
| Free in-country shipping |
|
|
| Priority on-bench service |
|
|
| Coverage of user-caused EOS and ESD damage |
|
|
| Loaner unit shipped within 48 hours |
|
Maintain Accuracy, Get Updates, Pass Audits
| Calibration Features: |
Z540 Calibration1 |
ISO 17025 Compliant1 |
ISO 17025 Accredited |
|---|---|---|---|
| Certificate of calibration and calibration label designed to meet audit requirements |
|
|
|
| Firmware updates, if applicable, along with safety and reliability updates ² |
|
|
|
| OEM procedures for measurements ² |
|
|
|
| Test data | Optional |
|
|
| Calibration record retention |
|
|
|
| Traceability |
|
|
|
| Uncertainty analysis |
|
|
|
| Independent verification by a ISO/IEC accredited organization (with logo on certificate) |
|
| Product/Option |
Description |
|---|---|
| Tektronix Opt. C3 | Calibration service 3 years. C3 provides for 2 calibration events during 3 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2-years calibration coverage. |
| Tektronix Opt. C5 | Calibration service 5 years. C5 provides for 4 calibration events during 5 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4-years calibration coverage. |
1 May be ISO 9001 in specific locations.
2 Standard with factory certified service.
Some limits apply, see program terms for details.
Need to Calibrate More Instruments?
Tektronix is a leading accredited calibration services provider for all brands of electronic test and measurement equipment, servicing more than 140,000 models from 9,000 manufacturers. With 100+ labs worldwide, Tektronix serves as your single global partner delivering tailored calibration programs with OEM quality at a market price. Onsite, local pickup and delivery, and other options available.
